222565

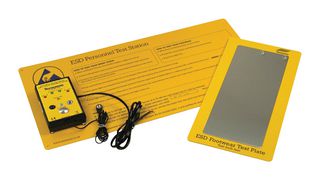

222565 is a high speed, high accuracy wrist strap / footwear test station with output. The tester features a relay terminal that can be integrated with electronic door locks, lights, buzzers, etc. It is capable of switching up to 0.5A @ 50VDC. An output cable with stripped ends is included with the tester to help you wire your device to the tester’s relay terminal.

• Test voltage: 24VDC
• 1 second test cycle
• LEDs display pass and fail conditions
• Buzzer sounds on pass
• Test range: 750Kohm low, 35Mohm high
• ON/OFF output signal is 9VDC, 0.1A
• RJ12 output socket

内容

1 wrist strap / footwear tester, 1 x wall plate, 1 foot plate, Single foot, 1 x output cable, 1 x 9V alkaline battery, 1 x certificate of calibration.
