SEN0192

Digital microwave sensor that is designed to be used in motion detection applications such as measuring vehicle speed, door motion detection, automatic washing, production line material detection and car reversing sensors etc. The microwave sensor can be useful when combined together with other sensors to enhance measurement accuracy.

• Non-contact detection
• Readings not affected by temperature, humidity, noise, air, dust or light
• Strong resistance to radio frequency interference
• Low output, unharmful to human
• Wide detection range and high velocity
• Supports non-living object detection
• Detection range: 2-16m (continuously adjustable)
• Operating Voltage: 5V DC
• Operating Current: 37mA Typical, 60mA Max.
• Plug and play 3-pin Gravity interface

内容

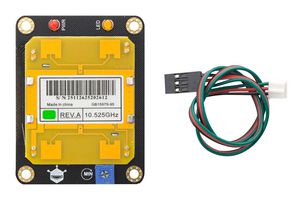

Microwave sensor and Digital sensor cable
