DIGILENT 250-003
JTAG-USB编程线缆, Digilent 6 针JTAG针座, 10x快过 JTAG3线缆
产品概述

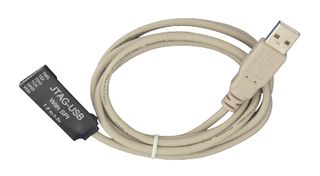

250-003 is a JTAG-USB cable which allows a PC to connect to a JTAG scan chain or to access the SPI interface on a board equipped with the appropriate 6 pin header. In this way, the user can program devices on programmable logic boards using the Digilent Adept Suite. Similarly, the user can also program AVR microcontrollers on Digilent embedded control boards using the Digilent AVR programmer application.
- Low cost JTAG configuration solution
- Connects to the USB port of a PC, and to a standard 6 pin JTAG programming header
- Can be used with Digilent Adept Suite & AVR Device Programmer software
- Can program devices that have a JTAG voltage of 1.8V or greater
内容
Programming Cable only
