6069-410-027

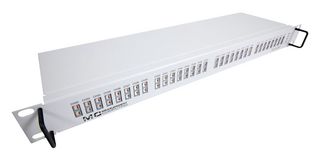

TC-32-EXP is a 32-channel thermocouple input expansion device for TC-32 with 8 digital inputs and 32 digital outputs/ alarms It adds 32 differential thermocouple (TC) inputs to TC-32 for a total of 64 TC channels (includes 40-pin ribbon cable for connecting to TC-32)).

• Two 24-bit ADCs (one ADC per 16 inputs)
• TC channels field-to-host isolation
• 3s/s per update rate
• Support for type J, K, R, S, T, N, E, and B thermocouples, software-selectable per channel
• One integrated cold junction compensation (CJC) sensor per TC input
• Open thermocouple detection (OTD) to detect faulty TC connections
• 8 digital inputs, isolated from TC and host
• 32 digital outputs/alarms isolated from TC inputs and host
• DIO connections are made to 50-pin header connector
• Powered by host TC-32

内容

32-channel thermocouple input expansion device, 40-pin ribbon cable.

注释

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
