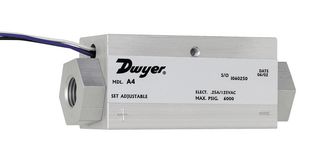

A4-2

A4-2 is a rugged series A4 differential pressure switch which offers field adjustments and can handle system pressures up to 6000psig. Piston design allows mounting in any orientation. The switch is capable of carrying moderate shock and vibratory loads.

• Repeatability ±4psi (.28bar)
• SPDT switch(AC: 3VA, 0.25A at 120VAC, DC: 5VA, 0.25A at 175VDC)
• 24AWG X 30.5cm wire leads connection
• 1/4" female NPT process connection
• Mounted in any position
• Temperature limit range from -65 to 225°F (-54 to 107°C)
• Pressure limit of 2000psid (138bar), 6000psig (413bar)
