PRV-1

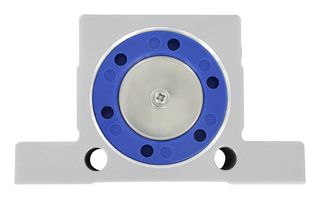

PRV-1 is a series PRV pneumatic roller vibrator. It has a high vibration frequency feature that can prevent material jams in pipe delivery. It can also be applied for bridge-break or concrete injection operation conditions. The special aluminium body is equipped with a roller and ring with multi-nozzles. It is tightly closed by plastic side covers. Vibration is caused when the roller pushed by compressed air runs in a rotary motion to produce centrifugal force.

• 1/8" BSPT female with 1/4" OD push to connect adapter on PRV1
• Noise level range from 75-100dBA
• Supply pressure range from 29 to 87psi (2 to 6bar)
• Temperature limit range from 212°F (100°C)
