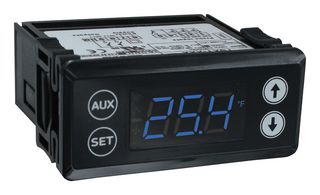

TSXT-213

TSXT-213 is a series TSXT digital temperature switch. It is designed for refrigeration control. It accepts PTC or NTC temperature probe types and can control the compressor, defrost, fan, alarm, and light in a refrigeration system. Host/server configurations allow synchronization of defrost cycles between different units. Programming is performed through the front keypad, or by using the TS2-K programming key. Typical application include refrigerated cabinets, walk-in coolers, applications requiring defrost cycles.

• 3 relay output, 3 PTC/NTC probe input, blue display, 115VAC, capacitive touch keys, MODBUS®
• 3 temperature inputs and one digital input for complete refrigeration control
• Configuration key available for programming multiple units
• Capacitive buttons offer clean panel face design
• 1 HP (Relay 1) horsepower rating (HP)
• Accuracy of ±1% FS
• 3-digit, plus sign display
• Non-volatile memory backup
• Ambient operating temperature range from 32 to 131°F (0 to 55°C)
• IP65 front panel rating
