TMSB00000-01
风扇速度控制器, 风扇控制器, TMS, 11V-57V, Thermal Fan Controller, EBM Pabst DC Compact Speed Controlled Fans
可订购
有货时请通知我
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY4,035.140 (CNY4,559.7082) |
| 5+ | CNY3,897.940 (CNY4,404.6722) |
| 10+ | CNY3,807.480 (CNY4,302.4524) |
| 25+ | CNY3,717.020 (CNY4,200.2326) |
| 50+ | CNY3,642.680 (CNY4,116.2284) |
包装规格：每个
最低: 1
多件: 1
CNY4,035.14 (CNY4,559.71 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
产品概述

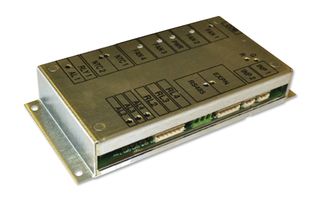

The TMSB00000-01 is a flexible and fully configurable Thermal Management System (TMS) Controller that can be used with EC/DC four wire speed controlled fans. The fan can be individually speed controlled against one of the two temperature sensor inputs. The controller has four Solid state relays (SSRs) that can be individually configured to give an alarm output against speed or temperature.
- Works on any DC supply voltage between 12 and 57V
- Fan speed based on temperature profile, independent profile for each fan
- Compatibility with both 0 to 10V PWM and open collector PWM four-wire fans
- 11A Maximum supply for fans running at full speed powered by the controller PCB
- 2x Thermistor inputs to configure temperature selection to control each fan
- 2x Switch inputs suitable to control door alarms, test switch, fan boost
- 4x Relay alarm outputs
- Daughter board option for two 230VAC 10A relays
- PC Interface for configuration, electrically isolated
相关产品
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
税则号：90328900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：Y-Ex
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
下载产品合规证书
产品合规证书
重量（千克）：.17
