SQUN702E-T1_GE3
Dual MOSFET, Complementary N and P Channel, N Channel, 200 V, 200 V, 30 A, 30 A, 0.0077 ohm

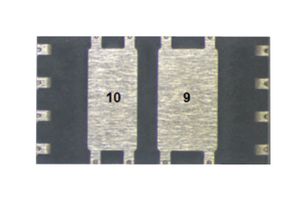

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoSQUN702E-T1_GE3
Order Code3128862RL
Product RangeTrenchFET Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 41 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 100+ | CNY16.740 (CNY18.9162) |
| 500+ | CNY14.970 (CNY16.9161) |
| 1000+ | CNY13.620 (CNY15.3906) |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 1
CNY1,674.00 (CNY1,891.62 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoSQUN702E-T1_GE3
Order Code3128862RL
Product RangeTrenchFET Series
Technical Datasheet
Channel TypeComplementary N and P Channel, N Channel
Transistor PolarityComplementary N and P Channel, N Channel
Drain Source Voltage Vds N Channel200V
Drain Source Voltage Vds200V
Continuous Drain Current Id30A
Drain Source Voltage Vds P Channel200V
Continuous Drain Current Id N Channel30A
On Resistance Rds(on)0.0077ohm
Continuous Drain Current Id P Channel30A
Transistor MountingSurface Mount
Drain Source On State Resistance N Channel0.0077ohm
Drain Source On State Resistance P Channel0.0077ohm
Rds(on) Test Voltage10V
Gate Source Threshold Voltage Max3V
Transistor Case Style-
Power Dissipation Pd60W
No. of Pins10Pins
Power Dissipation N Channel60W
Power Dissipation P Channel60W
Operating Temperature Max175°C
Product RangeTrenchFET Series
QualificationAEC-Q101
Automotive Qualification StandardAEC-Q101
MSLMSL 1 - Unlimited
SVHC0
