FSB50550BS

智能功率模块 (IPM), MOSFET, 500 V, 7 A, 1500 Vrms, SPM5Q-023, SPM5

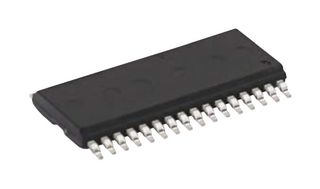

ON SEMICONDUCTOR FSB50550BS

图片仅用于图解说明,详见产品说明。

制造商产品编号:
FSB50550BS
库存编号
2748790
技术数据表:
FSB50550BS   Datasheet
查看所有技术文档

产品范围选择器 (Motion SPM 5 Series)

查看全系列相关产品

产品概述

The FSB50550BS from Fairchild Semiconductor is an advanced motion SPM 5 module in SPM5Q-023 package. It provides a fully featured, high performance inverter output stage for AC Induction, BLDC and PMSM motors. This module integrates optimized gate drive of the built-in MOSFETs (FRFET technology) to minimize EMI and losses while also providing multiple on-module protection features including undervoltage lockouts and thermal monitoring. The built-in high speed HVIC requires only a single supply voltage and translates incoming logic level gate inputs to high voltage, high current drive signals required to properly drive module's internal MOSFETs. Separate open source MOSFET terminals are available for each phase to support widest variety of control algorithms. It has control supply voltage from 13.5V to 16.5V (applied between VDD & COM), 300V typical, 400V maximum supply voltage (applied between P & N). Typical applications include 3-phase inverter driver for small power AC motor
  • UL1557 certified (file number E209204), built-in bootstrap diodes simplify PCB layout
  • PWM switching frequency of 15KHz (Tj <= 150°C)
  • 500V FRFET MOSFET 3-phase inverter with gate drivers and protection
  • High side bias voltage range from 13.5V to 16.5V (applied between VB and VS)
  • Separate open source pins from low side MOSFETs for three phase current sensing
  • Active-high interface, works with 3.3V / 5V logic, schmitt-trigger input
  • Optimized for low electromagnetic interference
  • HVIC temperature sensing built-in for temperature monitoring
  • HVIC for gate driving and undervoltage protection
  • 1500Vrms/min isolation rating, 1µs blanking time for preventing arm-short

应用

电机驱动与控制

警告

该产品的市场需求较大, 导致交货时间延长, 交货日期可能会有延迟.

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
MOSFET

:
500V

:
7A

:
1500Vrms

:
SPM5Q-023

:
SPM5

:
Motion SPM 5 Series
