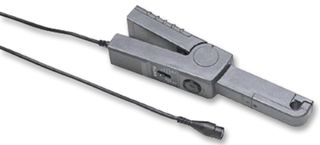

FLUKE 80I-110S

电流探头, BNC插头, 电流夹, 100 A, 50 mA, Fluke Scope Meter测试工具, 电力谐波分析仪,示波器,万用表

FLUKE 80I-110S - 电流探头, BNC插头, 电流夹, 100 A, 50 mA, Fluke Scope Meter测试工具, 电力谐波分析仪,示波器,万用表

图片仅用于图解说明,详见产品说明。

制造商:
FLUKE FLUKE
制造商产品编号:
FLUKE 80I-110S
库存编号
2422944
查看所有技术文档

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
BNC插头

:
电流夹

:
100A

:
50mA

:
Fluke Scope Meter测试工具, 电力谐波分析仪,示波器,万用表

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

产品概述

The FLUKE 80I-110S is an AC/DC Current Probe designed to provide with safe, high accuracy measurements for a wide range of applications. The specially designed built-in safety features such as the 600Vrms rating at the input jaws, output cable and BNC connector enhance work safety in power distribution systems. It is shielded for high noise immunity, to prevent unwanted noise when troubleshooting around noise generating devices. It accurately reproduces current waveforms as they occur. Connect the clamp to a Fluke ScopeMeter® test tool or other waveform recording device like a Fluke power harmonics analyser, to clearly see distorted waveforms that result from non-linear loads. Current clamps, not specifically designed for oscilloscopes, may add distortion to the actual signal present in the system under test. The wide measurement range from 50mA to 100A with a high fidelity millivolt output gives full advantage of the high resolution oscilloscope displays.
  • Zero error adjustment
  • 1Hz to 20kHz Bandwidth
  • 1.6m Output cable length
  • 9V/55hrs Battery life

应用

测试与测量, 工业, 商业, 照明, 电机驱动与控制, 计算机和计算机周边

附注

校准服务可用于此产品. 可选择标准认证服务, 或国际认可的UKAS认证校准. 请访问我们的校准页面去了解更多详情.
