VNCLO-MB1A

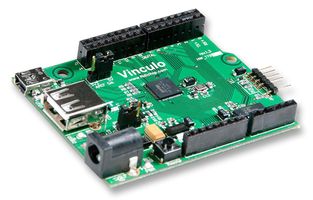

The VNCLO-MB1A is a mother board based on the Vinculum II, VNC2 IC. The VNC2 is the second of Vinculum family of embedded dual USB host controller devices. This board designed as a prototyping platform for VNC2 based designs and applications. The board uses a VNC2-64Q package to facilitate 38 GPIO options on 0.1inch pitch header pins. A 10bit A to D converter has also been added to offer connectivity to analogue inputs. This A to D converter can be read by the VNC2-64Q SPI host interface. For USB connectivity the module includes one USB type A connector and one mini B connector to provide access to the VNC2-64Q USB ports. An additional connector, to mate with the VII debugger/programmer module is provided to connect to the VNC2 IDE (Integrated Development Environment) for creating and debugging application code to run on the Vinco mother board. The debugger/programmer module also allows the Vinco board to be programmed.

• 5V operating voltage
• 30 digital I/O
• 8 analogue I/O
• 256KB flash memory
• 16KB RAM
• Superset of the Arduino Duemilanove/Uno development boards
• Precompiled drivers for a variety of interfaces example USB, UART, SPI
• Compatible with existing Arduino shields
• Precompiled driver support for a wide range of USB device classes
• 9V input power supply
