901-11052 HGBC2-5RD 2
线缆标记, Helagrip, 滑动式, V型切, 预打印, 2, 白色, 红色, 3.5mm, 5 mm
图片仅用于图解说明，详见产品说明。
制造商产品编号901-11052 HGBC2-5RD 2
库存编号2932423
您的零件号
技术数据表
11 有货
需要更多？
11 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY45.720 (CNY51.6636) |
| 10+ | CNY45.040 (CNY50.8952) |
| 100+ | CNY44.360 (CNY50.1268) |
| 250+ | CNY43.480 (CNY49.1324) |
| 500+ | CNY42.590 (CNY48.1267) |
| 1000+ | CNY41.700 (CNY47.121) |
包装规格：每组 250
最低: 1
多件: 1
CNY45.72 (CNY51.66 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品概述
Helagrip Slide On, Pre-Printed Cable and Wire Markers from HellermannTyton have a specially designed profile to fit a range (2mm to 5mm) of cable diameters. Its chevron cut ends enable locking alignment of a series of pre-printed legends. Manufactured from a flexible, high-grade PVC compound that is indelibly marked. Ideally suited to panel building, mass transit, utilities, telecommunications and electrical contracting.

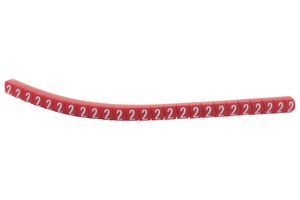

- Pack of 250 red cable markers with pre-printed white “2” legend
- Easy to apply -- simply slide on to cable, no special tools needed
- Fits bundle diameter 2mm to 5mm max.
- Chevron cut to lock markers together ensuring text remains in place
- Flexible PVC is cadmium free
- Markers are applied before termination takes place
- 3.5mm long
- Specifications BS-2782-540B, BS-6746C, IEC 757, UL224
- Operating temperature range -65°C to +105°C; intermittent +135°C
技术规格
标记类型
预打印
字符颜色
白色
标记尺寸
3.5mm
电缆直径最小值
2mm
产品范围
Helagrip HGBC2-5 Series
字符
2
标记颜色
红色
电缆直径最大值
5mm
标记材料
PVC(聚氯乙烯)
SVHC(高度关注物质)
To Be Advised
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
税则号：39269097
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:To Be Advised
下载产品合规证书
产品合规证书
重量（千克）：.12
