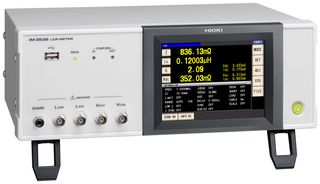

IM3536

IM3536 is a general-purpose LCR meter offers a wide DC and 4Hz to 8MHz testing frequency while delivering 0.05% accuracy, ideal for evaluating the characteristics of next generation electronic components, including power supply inductors due to the instrument’s maximum measurement frequency of 8MHz.

• Measurement range from 100mohm to 100Mohm, 10 ranges (all parameters defined in terms of Z)
• High-speed measurement of 1ms (fastest time)
• High-precision measurement of ±0.05%rdg (representative value)
• Guaranteed accuracy range from 1mohm, low-impedance measurement with unmatched repeatability
• DC bias function: measure under conditions simulating actual use or in accordance with standards
• 5.7inch colour TFT with touch panel
• Comparator, trigger function, open/short compensation, contact check, panel loading/saving
• EXT I/O (handler), USB, USB flash drive, LAN, GP-IB, RS-232C, BCD interfaces
• Power supply range from 100 to 240VAC, 50Hz/60Hz, 50VA maximum
• Dimension is 330mm W x 119mm H x 168mm D

内容

LCR meter, Power cord x 1, Instruction manual x 1, LCR application disc (Communications user manual) x1.

注释

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
