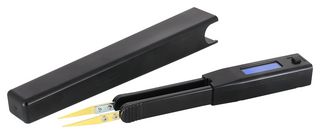

IDEAL-TEK ST-LED

智能镊子发光二极管测试器

IDEAL-TEK ST-LED
IDEAL-TEK ST-LED
视频
视频
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
ST-LED
库存编号
2528636
  • 在上面的文本框中输入您的自定义部件号
  • 添加的部件号数量已达到最大值。
    删除旧条目以添加更多条目。

已保存部件号

Part Number Saved

也称为:
7001535262034
技术数据表:
ST-LED   数据表
ECAD / MCAD
Supply Frame Models Link
查看所有技术文档

产品信息


查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (2)

产品概述

The ST-LED from Ideal-Tek is a ST-LED smart tweezers LED tester. This is a specialized solution for testing and verification of SMD and through hole LEDs. The device design combines a pair of high quality gold plated tweezers and a digital adaptive LED tester in a compact, lightweight, battery powered instrument. The surface mount devices are usually more difficult to test and identify SMD than conventional components due to their size. The ST-LED gives users an easy way to test and verify various types of LEDs even already placed on boards. The probe can also be used to test through hole LED. The ST-LED performs automatic LED polarity detection using a unique safe adaptive test algorithm. After LED polarity detection, the Smart Tweezers LED tester lights the LED at the preset test current value and at the set current pulse duration.
  • Convenient one-hand operation
  • Ideal for Surface Mount Devices
  • Automatic LED polarity detection and display
  • Forward drop voltage display
  • Adjustable constant test current 1mA to 30mA
  • Adjustable test duty cycle 10msec to 1000msec
  • LED visual brightness verification
  • LED visual colour verification
  • OLED display, integrated Li-Ion battery
  • Dimension is 148mm x 20mm x 15mm and weight is 29g

内容

ST-LED tester, Micro USB charging cord.

也称为

7001535262034

7 有货 需要更多?

7 英国 有库存,可在 5-6 个工作日内发货

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

CNY1,808.80 ( 不含税  ) CNY2,043.944 ( 含税 )

定价不可用。 请联系客户服务

包装规格:
每个
多件: 1 最低: 1
  • 1+
数量 价钱 (不含税) (含税) 您所支付金额 (不含税)


1+ CNY1,808.80 CNY2,043.944
