CY8CKIT-044

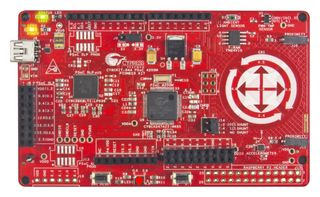

CY8CKIT-044 PSoC™ 4 M-series pioneer kit is a low-cost platform enabling design and debug of PSoC™ 4 M-Series devices. The PSoC™ 4 M-series pioneer kit features the new PSoC 4200M device - an ARM Cortex-M0 CPU with 128KB Flash, 16KB SRAM, 55 GPIOs and new peripherals including RTC, CAN and a DMA controller. The PSoC 4 M-series pioneer kit offers footprint-compatibility with Arduino™ Shields, 6-pin Digilent® Pmod™ Peripheral Modules, and Raspberry Pi boards. This kit features two CapSense® Proximity headers, a CapSense Gesture Pad, an ambient light sensor, a 3-Axis accelerometer, a PWM temperature sensor, an RGB LED, a push button switch, an on-board programmer/debugger and USB-UART/I2C bridge functionality block (KitProg), and a Cypress F-RAM™.

• Innovative CAPSENSE™ Gesture Pad designed to support swipe and circular gestures
• Flexible prototyping
• Supports operating voltages of 3.3V or 5V

内容

PSoC™ 4 M-series pioneer board, USB standard-A to mini-B cable, Four jumper wires (4" each), Two proximity sensor wires (5" each), Quick start guide.
