TLE493DP2B6MS2GOTOBO1

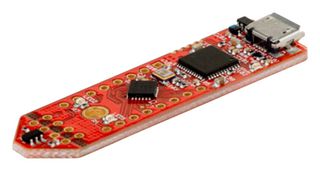

TLE493DP2B6MS2GOTOBO1 is an XENSIV™ - TLE493D-P2B6 2GO kit for 3D magnetic field sensing with 3D magnetic hall sensors – plug and play. TLE493D-P2B6 3D magnetic sensor 2GO kit is a budget-priced evaluation board equipped with a magnetic sensor for three dimensional measurement combined with an ARM® Cortex™-M0 CPU. It has a complete set of on-board devices, including an on-board debugger. In addition Infineon is offering so called add-on components which are adapters for the 3D magnetic sensor 2GO kits. These add-ons (e.g. joysticks, rotation knobs, linear slider etc.) comprise a magnet and can be directly mounted onto the 2GO kits. Together with a dedicated GUI it’s the perfect tool for fast and easy plug-and-play systems. It is suitable for automotive, industrial and consumer applications.

• TLE493D-P2B6 automotive predefined variant (three dimensional magnetic sensor)
• XMC1100 (ARM® Cortex™-M0 based)
• On-board J-Link Lite Debugger (realized with XMC4200 microcontroller)
• Power over USB (micro USB), ESD and reverse current protection
• EvalBoard is based on the XMC2Go-Kit

内容

3D evaluation board, A standalone 7x7x5 mm ferrite block magnet.
