TLE5014CPSEVALKITTOBO1

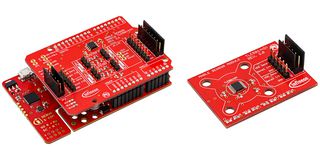

TLE5014CPSEVALKITTOBO1 is a XENSIV™ - TLE5014CPS evalkit that features the SENT, SPC and PWM interfaces of the digital GMR angle sensor. The evaluation kit enables a quick and thorough evaluation of the TLE5014 GMR-based angle sensor. An evaluation kit consists of a programmer including a microcontroller with a shield and a satellite board. Additionally to the hardware, a graphical user interface (GUI) is available to interact with the sensor. The connection between the evaluation kit and a PC requires a Micro-USB cable. The TLE5014CPS satellite board embeds a TLE5014F16D. The TLE5014F16D is a dual-die sensor with a top/ bottom configuration. With this derivate, the user can modify any internal settings. Required discrete components such as decoupling capacitors are also present on the board. A 3D-printed rotation knob incorporates a magnet, the whole can be placed on the board to enable fast prototyping and evaluation.

• Features the TLE5014C16D/P16D/S16D (SENT/SPC/PWM interface)
• Evaluation kit includes a GUI software

内容

Programmer & satellite board.
