3.100.200.383
面板安装定时器, 微型计时器, HK07, 4.5 VDC, 35 VDC, 0 s, 99999.99 h, 13 mm, 30 mm
13 有货
需要更多？
13 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY426.660 (CNY482.1258) |
| 5+ | CNY418.130 (CNY472.4869) |
| 10+ | CNY409.600 (CNY462.848) |
| 20+ | CNY401.070 (CNY453.2091) |
包装规格：每个
最低: 1
多件: 1
CNY426.66 (CNY482.13 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述

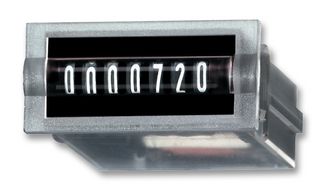

The 3.100.200.383 is a 7-digit Electromechanical Hour Meter/Timer with many different installation options (DC). It offers a particularly large number of variants and can be used in many different applications. It is available as panel-mount version latch/display front side and it can be used in many different fields of application. It has encapsulated housing and this non-resettable counter is extremely tamper-proof.
- High shock and impact resistance
- Low power consumption, suitable for battery operation
- Small dimensions - Magnified large figures
- Machine-solderable and wash-proof
- Count retention in case of power failure
- Long service life
- IP65 Protection rating
技术规格
电源电压最小值
4.5VDC
最短时间
0s
面板开孔高度
13mm
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
电源电压最大值
35VDC
最长时间
99999.99h
面板切割孔宽度
30mm
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Germany
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Germany
进行最后一道重要生产流程所在的地区
税则号：91069000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.019
