D6000GENB

D6000GENB is an embedded software package for Keysight's InfiniiVision 6000 X-Series oscilloscopes enables protocol triggering and decode for a broad range of the most common serial buses used today for embedded and mixed-signal designs. This package also enables other advanced analysis capabilities including mask testing and frequency response analysis to help test today's electronic designs. This package enables I²C, SPI, RS232/422/485/UART, I²S and USB-PD serial trigger and decode, mask limit testing, frequency response analysis (Bode plot) and enhanced HDTV video testing. Advanced math already comes standard on all 6000 X-Series oscilloscopes.

• Embedded analysis software for the 6000 X-series
• Triggering on and analysing I²C, SPI, RS232/422/485/UART, I²S and USB PD serial buses
• Multiple bus decode triggering and listing display
• Perform 2-wire, 3-wire and 4-wire SPI serial protocol trigger and analysis

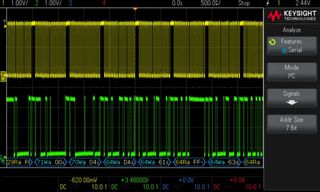

• On-screen serial decode time-correlated with the serial data waveforms
