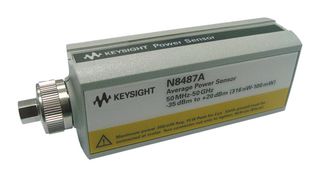

N8487A
射频功率传感器, 50MHz至50GHz, -35dBm至+20dBm, 2.4mm插头, N8480 Series
图片仅用于图解说明，详见产品说明。
1 有货
需要更多？
1 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY57,375.900 (CNY64,834.767) |
包装规格：每个
最低: 1
多件: 1
CNY57,375.90 (CNY64,834.77 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商产品编号N8487A
库存编号4009015
产品范围N8480 Series
技术数据表
测试频率范围50MHz至50GHz
功率量程-35dBm至+20dBm
测量速度-
射频连接器类型2.4mm插头
产品范围N8480 Series
SVHC(高度关注物质)To Be Advised
产品概述
N8487A is a thermocouple power sensor with EEPROM feature. This device is a high accuracy thermocouple power sensor that allows direct measurement of RF or microwave power through the heating effect it has on a terminating load. All calibration data for the power sensor is stored in EEPROM and is downloaded to the power meter when the sensor is connected.
- EEPROM to store cal factors eliminates manual entry
- Wide frequency range from 50MHz to 50GHz
- Wide dynamic range from -35dBm to +20dBm
- Best-in-class power linearity of less than 1%
- Excellent SWR of mismatch uncertainty & highly accurate power repeatability
- Accurate calibration and traceability to US national institute of standards and technology
- SCPI codes compatible with 8480 series (option CFT)
- Dimension is 38 mm W x 30 mm H x 121 mm L
内容
Standard power sensor, Certificate of calibration.
技术规格
测试频率范围
50MHz至50GHz
测量速度
-
产品范围
N8480 Series
功率量程
-35dBm至+20dBm
射频连接器类型
2.4mm插头
SVHC(高度关注物质)
To Be Advised
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Malaysia
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Malaysia
进行最后一道重要生产流程所在的地区
税则号：90308900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：Y-Ex
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:To Be Advised
下载产品合规证书
产品合规证书
重量（千克）：.5
