49 11 A0

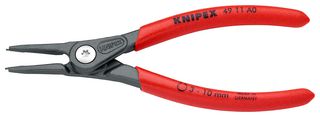

钳子，卡簧，外部直形，3 至 10 mm孔径，140 mm长度
图片仅用于图解说明，详见产品说明。
12 有货
需要更多？
12 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY215.730 (CNY243.7749) |
包装规格：每个
最低: 1
多件: 1
CNY215.73 (CNY243.77 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商KNIPEX
制造商产品编号49 11 A0
库存编号4401219
也称为GTIN UPC EAN: 4003773048718
技术数据表
钳子类型外部直型
总长140mm
孔尺寸(最小)3mm
孔尺寸(最大)10mm
端头数量-
产品范围-
SVHC(高度关注物质)No SVHC (27-Jun-2018)
产品概述
49 11 A0 is a precision circlip plier for external circlips on shaft. It features heavy duty in continuous operation: up to 10 times longer service life compared to turned tips. Precision external circlip plier for installing or removing circlips on shafts. Circlips are held securely, large contact faces and the position of the tips make it difficult for the circlip to fly off.
- With inserted tips for reliable work, large contact faces on tips: no distortion of circlips
- Bolted joint: precise, zero backlash operation, internal opening spring, protected and captive
- Non-slip plastic coating on handles, for fitting snap rings on shafts, ranging from 1/8" - 25/64"
- Heavy-duty continuous operation: up to 10 times longer service life than turned tips
- Internal opening spring, protected and captive, grey atramentized pliers
- Inserted tips: spring steel wire, drawn, handles coated with non-slip plastic
- Pliers body: chrome vanadium electric steel; forged, oil-hardened, 140mm long
- DIN 5254 A standard, dimension is 140 x 62 x 12mm
- 1/32" tip width
警告
Do no use on live circuits. Always switch off power. Always wear approved eye protection.
注释
Do no use on live circuits. Always switch off power. Always wear approved eye protection.
技术规格
钳子类型
外部直型
孔尺寸(最小)
3mm
端头数量
-
SVHC(高度关注物质)
No SVHC (27-Jun-2018)
总长
140mm
孔尺寸(最大)
10mm
产品范围
-
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Germany
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Germany
进行最后一道重要生产流程所在的地区
税则号：82032000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：不适用
RoHS 邻苯二甲酸盐合规:不适用
SVHC:No SVHC (27-Jun-2018)
下载产品合规证书
产品合规证书
重量（千克）：.1
