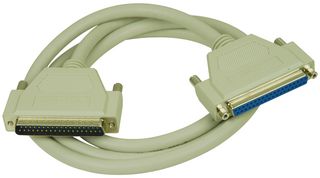

CSMN37MF-5
计算机电缆, D-SUB插头, 37路, D-Sub插座, 37路, 5 ft, 1.52 m, 灰色
产品信息
技术文档 (2)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述
The CSMN37MF-5 is a deluxe molded D-sub Cable Assembly with DB37 male to female connection. This deluxe molded gray cable assembly offers solid performance at economical prices. It is fully shielded throughout the entire cable to prevent against data corrupting EMI/RFI. Molded backshells provide superior strain relief while robust 26AWG conductors are wired straight through for ease of compatibility. Metal thumbscrews insure fast and easy connections. Custom lengths and pinouts are available with modest minimum requirements. It is applicable to RS-449 serial communications.
- Wired straight through for extending serial devices/peripherals
- 360° degree fully shielded for protection against EMI/RFI
- Gold plated contacts to provide reliable connections with repeated mating cycles
- Hex nuts on female connectors are removable to expose 4-40 thumb screws
应用
通信与网络, 传感与仪器, 工业
46 有货 需要更多？
×
您现在可以预订货品了 订购所需的数量并按正常方式结算。目前无法交付的数量将列入延期交货订单中，并在到货后立即发货。
交付周期内有额外库存， 交付周期大约为 23-1-16
46 英国 有库存，可在 5-6 个工作日内发货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 价钱 (不含税) (含税) | 您所支付金额（含增值税） (不含税) |
|---|---|---|
| 1+ | CNY461.08 CNY521.0204 | ( ) |
| 5+ | CNY460.50 CNY520.365 | ( ) |
| 10+ | CNY459.91 CNY519.6983 | ( ) |
| 25+ | CNY459.33 CNY519.0429 | ( ) |
| 50+ | CNY458.74 CNY518.3762 | ( ) |
| 100+ | CNY449.94 CNY508.4322 | ( ) |
