DGB25MF
连接器适配器, D-sub, 标准 D Sub, 插头, 25 路, 标准 D Sub, 插座, 25 路
390 有货
需要更多？
175 件可于 3-4 个工作日内送达(新加坡 库存)
215 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY195.380 (CNY220.7794) |
| 10+ | CNY177.010 (CNY200.0213) |
| 25+ | CNY165.900 (CNY187.467) |
| 100+ | CNY150.440 (CNY169.9972) |
| 250+ | CNY141.060 (CNY159.3978) |
| 500+ | CNY134.300 (CNY151.759) |
包装规格：每个
最低: 1
多件: 1
CNY195.38 (CNY220.78 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品概述

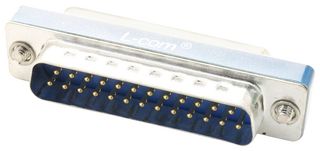

The DGB25MF is a slim-line socket saver DB25 Male to DB25 Female Adapter, dual-purpose slim-line socket savers extend the life by taking the abuse of frequently mated D-sub connectors used on expensive cables and ports. It is also panel-mounted to pass cables through a bulkhead the low profile design reduces leverage strain on overstressed computer ports and is fully shielded for electrically noisy environments. Universally designed for serial or parallel applications.
- Wired straight through extends life of frequently mated D-sub connectors
- Fully shielded to protect against EMI (electromagnetic interference)
- Gold-plated contacts to provide reliable connections with repeated mating cycles
- UL94V-0 connector insulator satisfies flammability requirements
技术规格
D Sub 连接器 A
标准 D Sub
转换前路数
25路
转换至极性
插座
产品范围
-
触芯镀层
镀金触芯
从性别转换
插头
D Sub 连接器 B
标准 D Sub
转换后路数
25路
触点材料
铜合金
SVHC(高度关注物质)
To Be Advised
DGB25MF 的替代之选
找到 2 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Taiwan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Taiwan
进行最后一道重要生产流程所在的地区
税则号：85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:To Be Advised
下载产品合规证书
产品合规证书
重量（千克）：.018144
