XF-1112-FAR

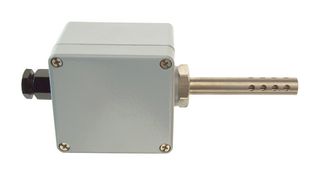

Thermometer, RTD, PT100, 3 Wire, 150°C, IP67 Housing, Duplex Element
图片仅用于图解说明，详见产品说明。
3 有货
需要更多？
3 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY1,772.200 (CNY2,002.586) |
| 5+ | CNY1,716.080 (CNY1,939.1704) |
| 10+ | CNY1,681.760 (CNY1,900.3888) |
| 25+ | CNY1,647.440 (CNY1,861.6072) |
包装规格：每个
最低: 1
多件: 1
CNY1,772.20 (CNY2,002.59 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品信息
制造商LABFACILITY
制造商产品编号XF-1112-FAR
库存编号2816462
也称为RTP Outdoor Airbox
技术数据表
温度计类型Pt100
最低感应温度-50°C
最高感应温度150°C
产品范围-
SVHC(高度关注物质)No SVHC (04-Feb-2026)
产品概述
XF-1112-FAR is a Pt100 planum resistance thermometer. It includes an integral transmitter that converts the Pt100 sensor output to a standard industrial 4 to 20mA output signal over a pre-configured range of -50 to +150°C. It is also configurable by the user allowing range and burnout direction to be changed. It also allows the user to trim output current at either 4 or 20mA.
- Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing
- Painted die-cast aluminium housing (L80 x W74 x H54mm)
- Perforated stainless steel probe (12.7mm x 75mm)
- Surface mounting
- Pt100, class B to IEC 751
- M20 nylon cable entry gland
- Sensor range (-200 to +850) °C (18 to 390) ohm
- Thermal drift is 0.0025%/°C (transmitter)
- Update time is 500ms, (10 to 30)VDC power supply
- Ambient operating range from -40 to +85°C
技术规格
温度计类型
Pt100
最高感应温度
150°C
SVHC(高度关注物质)
No SVHC (04-Feb-2026)
最低感应温度
-50°C
产品范围
-
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
税则号：90251900
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (04-Feb-2026)
下载产品合规证书
产品合规证书
重量（千克）：.588762
