2170226
多对电缆, ProfiBus, 每米, 屏蔽, 1对, 24 AWG, 0.64 mm²
需要更多？
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY32.420 (CNY36.6346) |
| 10+ | CNY31.340 (CNY35.4142) |
产品信息
产品概述

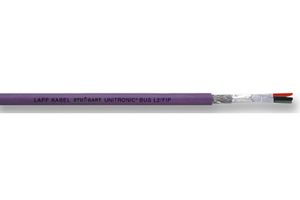

The 2170226 is a 100m 1-pair UNITRONIC® BUS PB H 7-W Screened Data Cable with single wire of bare copper and foam-skin polyethylene insulation. It is used for the SIEMENS field-net Sinec L2 DP, field bus system F.I.P. (factory instrumentation protocol) as well as for high performance data networks with 150Ω nominal impedance. The cable is designed for the system-defined transmission rates of 1.5Mbps, 2.5Mbps and 12Mbps, the transmission characteristics conform to the system and guarantee a high operating security during data transmission. The cable is intended for permanent installation in dry and damp interiors. Due to its double screening it is suitable for installation in electromagnetically demanding areas.
- CPR: Not Yet Qualified
- Fixed installation and maximum electromagnetic screening
- Used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
技术规格
屏蔽
24AWG
-
紫色
250V
铜
UNITRONIC BUS PB Series
1对
0.64mm²
-
7 x 0.2mm
LSZH(低烟无卤)
8mm
No SVHC (07-Nov-2024)
技术文档 (1)
2170226 的替代之选
找到 1 件产品
相关产品
找到 8 件产品
法律与环境
进行最后一道重要生产流程所在的地区原产地：Italy
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
