FFA.0S.302.CLAC44
圆形连接器, Standard Circular Connector, 0S系列, 电缆安装插头, 2 触点, 焊针/插座, 推挽
372 有货
175 您现在可以预订货品了
372 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY165.200 (CNY186.676) |
| 10+ | CNY162.680 (CNY183.8284) |
| 25+ | CNY158.960 (CNY179.6248) |
| 100+ | CNY155.090 (CNY175.2517) |
| 250+ | CNY151.990 (CNY171.7487) |
| 500+ | CNY148.890 (CNY168.2457) |
包装规格：每个
最低: 1
多件: 1
CNY165.20 (CNY186.68 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品概述

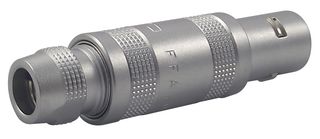

The FFA.0S.302.CLAC44 is a 2-way Circular Connector, 0S series, straight plug with cable collect. Chrome-plated brass shell and collect nut, nickel-plated brass latch sleeve and mid pieces. Push-pull self-latching system with two straight solder contacts. The modular design of the 0S series connector offers a solution for most applications. The push-pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 10A Current rating
- PEEK insulator
- IP50 Protection rating
- 5000 Maximum matings
- 4.8mΩ Maximum resistance
- 0.9mm Contact diameter
- 360° Screening for full EMC shielding
- 2 Low voltage insert configuration
技术规格
连接器类型
Standard Circular Connector
圆形连接器外壳类型
电缆安装插头
圆形连接器触芯类型
焊针/插座
连接器主体材料
黄铜主体
触点材料
黄铜、铍铜
IP密封等级
IP50
产品范围
0S系列
触芯数量
2触点
耦合方式
推挽
连接器主体涂层
铬色
触芯镀层
金
SVHC(高度关注物质)
No SVHC (14-Jun-2023)
相关产品
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Great Britain
进行最后一道重要生产流程所在的地区
税则号：85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (14-Jun-2023)
下载产品合规证书
产品合规证书
重量（千克）：.00753
