产品信息

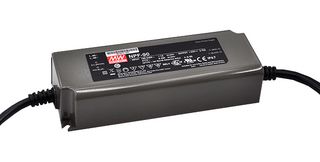

制造商MEAN WELL
制造商产品编号NPF-90-48
库存编号4206557
产品范围NPF-90 Series
技术数据表
电源应用家用和LED照明
输出功率最大值90.24W
输出电压最大值48V
输出电流1.88A
LED驱动器模式恒定电流, 恒定电压
输入电压最小值90VAC
输入电压最大值305VAC
产品范围NPF-90 Series
SVHC(高度关注物质)No SVHC (27-Jun-2024)
产品概述
NPF-90-48 is a NPF-90 series is a AC/DC LED driver featuring the dual modes constant voltage and constant current output. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with lP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. Typical applications are LED panel lighting, LED downlight, LED decorative lighting, LED tunnel lighting, moving sign.
- Constant voltage + constant current mode output, single output
- Plastic housing with class ll design
- Built-in active PFC function, class 2 power unit
- No load power consumption is <lt/>0.15W
- lP67 rating for indoor or outdoor installations
- Typical lifetime is <gt/>50000hours, 5 years warranty
- 90W output power
- Output voltage is 48V, output current is 1.88A
- Input voltage is 110/230V universal input, 90 to 305V
- Dimension is 63mm width x 37.5mm height x 171mm depth
技术规格
电源应用
家用和LED照明
输出电压最大值
48V
LED驱动器模式
恒定电流, 恒定电压
输入电压最大值
305VAC
SVHC(高度关注物质)
No SVHC (27-Jun-2024)
输出功率最大值
90.24W
输出电流
1.88A
输入电压最小值
90VAC
产品范围
NPF-90 Series
技术文档 (1)
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
税则号:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下载产品合规证书
产品合规证书
重量(千克):.77
