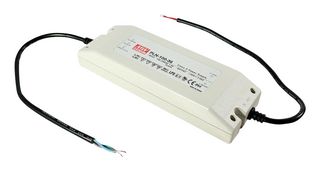

PLN-100-36
LED驱动器, ITE和LED照明, 95.4 W, 36 V, 2.65 A, 恒定电流, 恒定电压, 90 VAC
7 有货
需要更多？
7 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY456.570 (CNY515.9241) |
| 5+ | CNY399.500 (CNY451.435) |
| 10+ | CNY331.010 (CNY374.0413) |
| 50+ | CNY324.280 (CNY366.4364) |
包装规格：每个
最低: 1
多件: 1
CNY456.57 (CNY515.92 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品信息
制造商MEAN WELL
制造商产品编号PLN-100-36
库存编号4206595
产品范围PLN-100 Series
技术数据表
电源应用ITE和LED照明
输出功率最大值95.4W
输出电压最大值36V
输出电流2.65A
LED驱动器模式恒定电流, 恒定电压
输入电压最小值90VAC
输入电压最大值295VAC
产品范围PLN-100 Series
SVHC(高度关注物质)No SVHC (25-Jun-2025)
产品概述
PLN-100-36 is a PLN-100 series single output switching power supply. Safety standards are UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91 (except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB19510.1, GB19510.14, IP64 approved, design refer to UL60950.
- Universal AC input / full range (up to 295VAC), cooling by free air convection
- Protections: short circuit / overcurrent / overvoltage / overtemperature
- Built-in active PFC function, fully isolated plastic case with IP64 level
- Pass LPS, class 2 power unit, 100% full load burn-in test
- High reliability, suitable for LED lighting and moving sign applications
- Suitable for dry/damp locations, compliance to worldwide safety regulations for lighting
- Output voltage rating is 36VDC, 95.4W rated output power
- Input voltage range from 90 ~ 295VAC/127 ~ 417VDC, 88% typical efficiency
- Working temperature rating range from -30 ~ +50℃
- Dimension (L x W x H) is 200 x 70.5 x 35mm
技术规格
电源应用
ITE和LED照明
输出电压最大值
36V
LED驱动器模式
恒定电流, 恒定电压
输入电压最大值
295VAC
SVHC(高度关注物质)
No SVHC (25-Jun-2025)
输出功率最大值
95.4W
输出电流
2.65A
输入电压最小值
90VAC
产品范围
PLN-100 Series
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
税则号：85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下载产品合规证书
产品合规证书
重量（千克）：.52
