RFC-H13

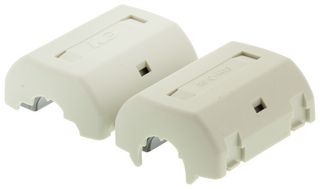

分裂核心铁氧体, 套筒, 13.5 mm, 170 ohm, RFC Series
无法检索可用信息
产品信息
制造商KGS KITAGAWA
制造商产品编号RFC-H13
库存编号9415769
产品范围RFC Series
技术数据表
电缆直径13.5mm
最低频率-
最高频率-
阻抗170ohm
产品范围RFC Series
SVHC(高度关注物质)No SVHC (25-Jun-2025)
产品概述
RFC-H13 is a GRFC series split ferrite core with plastic housing for easy installation on wired cables and cables with connectors. The snap-hinge feature allows the ferrite to be easily removed before or after assembly. It is used in flat-screen TVs, Industry 4.0, automotive, and medical applications.
- For frequency range from 30kHz to 1Ghz
- The design utilizes a soft ferrite core featuring 170 ohm impedance
- Harness guide provides easy harness winding
- Prevents cable pinching
- Reduces labour time and cost
- Applicable cable diameter range from ɸ12.5mm to 13.5mm
- Suited for high frequency applications
应用
工业
技术规格
电缆直径
13.5mm
最高频率
-
产品范围
RFC Series
最低频率
-
阻抗
170ohm
SVHC(高度关注物质)
No SVHC (25-Jun-2025)
RFC-H13 的替代之选
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Japan
进行最后一道重要生产流程所在的地区
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (25-Jun-2025)
下载产品合规证书
产品合规证书
重量（千克）：.103192
