1280.1020

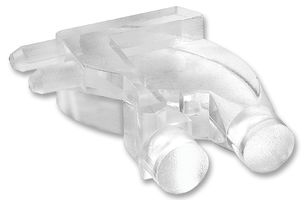

The 1280.1020 is a 2-fold Horizontal PCB Mount Light Guide can be used as a FEL substitute and so arranged end to end to similar or other FEL-components. The light guide is held in place on the printed board via two press-in lugs. The light guide take place in conjunction with SMD LEDs of type Mini TOPLED. It is used in electronic products that call for light to be emitted from a panel that is positioned at right angles to the circuit board. They are fitted to the circuit board by using push-fit lugs. Light guides form a key function in the human interface with a product, so their appearance and optical quality have a huge influence on aesthetics and overall perceptions. The options of horizontal light guides with square, round or rectangular displays provide design engineers with ultimate flexibility.

• P1 to P7 Recommended LED
• <lt/>5kV ESD protection
