PTTC-701
烙铁头, 锥形, 0.4 mm
需要更多？
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY1,038.970 (CNY1,174.0361) |
| 25+ | CNY1,019.320 (CNY1,151.8316) |
| 50+ | CNY999.660 (CNY1,129.6158) |
产品信息
产品概述

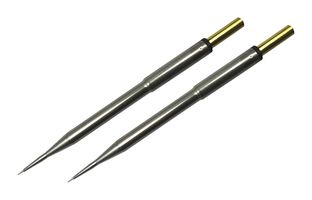

The PTTC-701 is a 0.4 x 19mm Tweezer Cartridge with conical bent tip. The 700-series tip for use with the MX-PTZ handpiece and standard applications. Provides an efficient solution for removal and replacement of chip. Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead free soldering needs as well as complete process control. SmartHeat® technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration.
- 0,4 mm Tip / Nozzle Diameter
- 19 mm Tip / Nozzle Length
- Style - Conical
- 390 °C Soldering Idle Temperature
- F = FR4/Fiber Glass, for most standard applications
技术规格
0.4mm
Metcal CV-5200, CV-500连接验证系统, MX-5200, MX-5000, MX-500焊台, CV-H4-PTZ, MX-PTZ Precicion镊子, MX-UK4升级套件
No SVHC (27-Jun-2024)
圆锥形
MX/CV System
法律与环境
进行最后一道重要生产流程所在的地区原产地：United States
进行最后一道重要生产流程所在的地区
RoHS
RoHS
产品合规证书
