ATREB215-XPRO-A

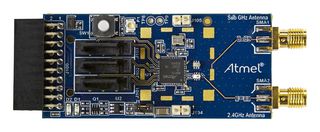

ATREB215-XPRO-A is a wireless extension board (carrier board) for AT86RF215 chip for the Xplained Pro evaluation platform. It can be connected with any Xplained Pro standard extension header on any Xplained Pro MCU board to provide wireless functionality. It is certified for FCC/IC for 2.4GHz and 915MHz ISM bands; certified for CE for 2.4GHz and 868MHz ISM bands.

• Two SMA connectors for operation at 863 - 928MHz and 2.4GHz
• Uses a Filter-Balun in Sub-1GHz path which has in-built harmonic rejection filter
• AT86RF215:wireless transceiver compliant to IEEE 802.15.4-2011/ 802.15.4g-2012 and ETSI TS 102 887-1
• Digital I/O: Xplained Pro extension header comprising the SPI interface of AT86RF215
• SATA connectors comprising the I/Q interface of AT86RF215
• Current measurement header
• One reset button and two user LEDs
• Supports with Performance Analyzer in Atmel Studio
• Operating temperature range from -40 to +85°C
