ATTINY3217-XPRO
评估套件, ATtiny 3217 Xplained Pro, tinyAVR MCU, 集成调试器
- 制造商：
- MICROCHIP MICROCHIP
- 制造商产品编号:
- ATTINY3217-XPRO
- 库存编号
- 2915515
- 技术数据表:
- ATTINY3217-XPRO Datasheet
产品信息
技术文档 (3)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述

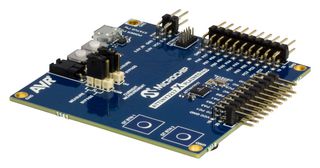

Evaluation kit is a hardware platform for evaluating the latest tinyAVR® microcontrollers. The evaluation kit comes with a fully integrated debugger that provides seamless integration with Atmel Studio. It is recommended for evaluation of the products such as ATtiny3217, ATtiny3216, ATtiny1617, ATtiny1616, ATtiny1614, ATtiny1607, ATtiny1606 and ATtiny1604. It currently supports more than 20 extension boards including wired and wireless connectivity, crypto authentication, QTouch capacitive touch kits as well as generic I/O and OLED boards.
- ATtiny3217 microcontroller
- One mechanical reset button, one mechanical user push button, one yellow user LED
- 32.768KHz crystal, 2 capacitive touch buttons and 2 Xplained Pro extension headers
- Connector for external debuggers
- Auto-ID for board identification in Atmel studio
- One yellow status LED and one green board power LED
- Symbolic debug of complex data types including scope information
- SPI, I2C, 4 GPIO data gateway interface
- Virtual COM port (CDC) and USB powered
