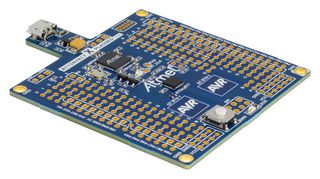

ATTINY817-XMINI

ATTINY817-XMINI is an ATtiny817 Xplained Mini evaluation kit. This is a hardware platform for evaluating ATtiny817 microcontroller. Supported by the Atmel Studio and MPLAB® X integrated development platform, the kit provides easy access to the features of the ATtiny817 and explains how to integrate the device into a custom design. This Xplained Mini series evaluation kit includes an on-board mini embedded debugger. No external tools are necessary to program the ATtiny817.

• ATtiny817 microcontroller
• One yellow user LED, one mechanical button and two QTouch® buttons
• mEDBG: Auto-ID for board identification in Atmel Studio/MPLAB® X
• mEDBG: one green board status LED, programming and debugging, Virtual COM Port (CDC)
• USB powered
• ATtiny817 power sources: 5V from USB, 3.3V regulator and external voltage
• Arduino shield compatible footprints

注释

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
