MICROCHIP EV10K72A

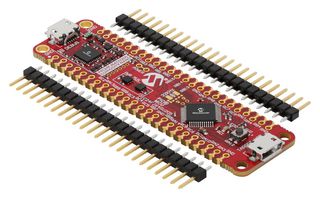

开发板, Curiosity Nano, PIC24FJ64GU205, 16位PIC24 MCU

MICROCHIP EV10K72A
MICROCHIP EV10K72A
MICROCHIP EV10K72A
MICROCHIP EV10K72A
MICROCHIP EV10K72A
MICROCHIP EV10K72A
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
EV10K72A
库存编号
3678035
  • 在上面的文本框中输入您的自定义部件号
  • 添加的部件号数量已达到最大值。
    删除旧条目以添加更多条目。

已保存部件号

Part Number Saved

技术数据表:
EV10K72A   数据表
ECAD / MCAD
Supply Frame Models Link
查看所有技术文档

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
Microchip

:
16位

:
PIC24FJ

:
PIC

:
PIC24

:
PIC24FJ64GU205

:
Curiosity Nano开发板PIC24FJ64GU205, 板载Nano调试器

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (2)

产品概述

PIC24FJ64GU205 curiosity nano development board is a cost-effective hardware platform to evaluate the PIC24FJ 'GP2/GU2' family of low power microcontrollers (MCUs) . The board features PIC24FJ64GU205, which offers 64KB of ECC Flash, 8KB of RAM, 12-bit/400Ksps ADC, 3 analogue comparators along with several Core Independent Peripherals (CIPs) and Full Speed USB 2.0 Host/Device/OTG. The PIC24FJ64GU205 device offers sleep current down to a few hundreds of nA while retaining the complete RAM content and is perfect for extending your battery life in sensor nodes, IoT and portable applications. The development board provides easy access to all features of the PIC24FJ64GU205 for rapid prototyping of your custom design. The board has a target USB connector to develop USB Device application using the integrated USB peripheral available on the PIC24FJ64GU205 MCU. It is supported by MPLAB® X Integrated Development Environment (IDE) and MPLAB® Code Configurator (MCC) development framework.
  • PIC24FJ64GU205 device with 64KB of ECC Flash and 8KB of RAM in 48-PIN TQFP package
  • Target USB connector to develop USB device apps using integrated USB peripheral on PIC24FJ64GU205
  • One user LED (yellow)
  • One mechanical user switch
  • Footprint for 32.768KHz crystal
  • USB powered
  • MIC5353 LDO regulator controlled by the on-board debugger
  • 1.8-3.6V output voltage
  • 500mA maximum output current (limited by ambient temperature and output voltage)

38 有货 需要更多?

38 英国 有库存,可在 5-6 个工作日内发货

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

CNY180.21 ( 不含税  ) CNY203.6373 ( 含税 )

定价不可用。 请联系客户服务

包装规格:
每个
多件: 1 最低: 1
  • 1+
数量 价钱 (不含税) (含税) 您所支付金额 (不含税)


1+ CNY180.21 CNY203.6373
