EV15R70A

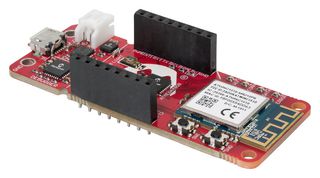

套件, AVR-IOT WA 开发板, 8位 AVR 微控制器

MICROCHIP EV15R70A
×
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
EV15R70A
库存编号
3381891

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
Microchip

:
8位

:
ATmega

:
AVR

:
megaAVR

:
ATmega4808, ATECC608A, ATWINC1510

:
AVR-IoT WA开发板ATmega4808/ATECC608A/ATWINC1510

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

CAD 下载

×

条款

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

产品概述

The AVR-IoT WA development board combines a powerful ATmega4808 AVR® MCU, an ATECC608A CryptoAuthentication™ secure element IC and the fully certified ATWINC1510 Wi-Fi® network controller which provides the most simple and effective way to connect your embedded application to Amazon Web Services (AWS). The board also includes an on-board debugger and requires no external hardware to program and debug the MCU. Out of the box, the MCU comes preloaded with a firmware image that enables to quickly connect and send data to the AWS platform using the on-board temperature and light sensors. Once users are ready to build their own custom design, they can easily generate code using the free software libraries in Atmel START or MPLAB Code Configurator (MCC). The AVR-IoT WA board is supported by two award-winning Integrated Development Environments (IDEs) (Atmel Studio and Microchip MPLAB® X IDE).
  • Four user LED's, two mechanical buttons
  • mikroBUS header footprint, TEMT6000 light sensor
  • MCP9808 temperature sensor
  • WINC1510 Wi-Fi module
  • USB and battery powered
  • Integrated Li-Ion/LiPo battery charger

65 有货 需要更多?

65 UK 有库存,可在 5-6 个工作日内发货

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

CNY297.30 ( 不含税  ) CNY335.95 ( 含税 )

定价不可用。 请联系客户服务

包装规格:
每个
多件: 1 最低: 1
数量 价钱 (不含税) (含税) 您所支付金额(含增值税) (不含税)


1+ CNY297.30 CNY335.95
