500-161-30

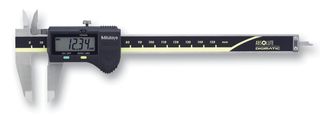

500-161-30 is a digital ABS AOS caliper. This digimatic caliper allows us to take reliable measurements and offer user the following benefits now equipped with the same AOS (Advanced Onsite Sensor) induction type encoder used in top-of-the-line ABS coolant-proof calipers. Due to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale (except 300mm type). The slider provides smooth, stable and comfortable operation.

• Character height 9mm (alleviation of fatigue with the high-contrast LCD)
• ABS (ABSOLUTE) scale requires no origin setting after power-on and also has no limit to response speed
• Extraordinary battery life
• 0 to 150mm range, flat depth bar, data output
• Max. Permissible Error E MPE is ±0.02mm, ±0.04mm max. Permissible Error S MPE
• 0.01mm digital step, unlimited max. response speed
• LCD, character height 9mm (150, 200mm) 11mm (300mm) display
• ORIGIN (ABS-Zero), ON/OFF, ABS / INC (INC ZERO), low voltage alarm
• Approx. 5 years under normal use battery life

内容

Digital ABS AOS caliper, 1 SR-44 battery.
