217183-0001

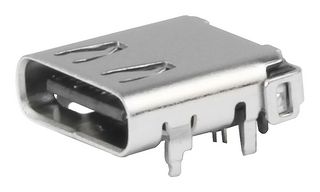

连接器, USB, USB C, USB 3.2, 插座, 24 路, 通孔安装, 直角型
5,419 有货
需要更多？
5419 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY8.460 (CNY9.5598) |
| 10+ | CNY7.190 (CNY8.1247) |
| 25+ | CNY6.730 (CNY7.6049) |
| 50+ | CNY6.410 (CNY7.2433) |
| 100+ | CNY6.110 (CNY6.9043) |
| 250+ | CNY5.720 (CNY6.4636) |
| 500+ | CNY5.450 (CNY6.1585) |
包装规格：单件（切割供应）
最低: 1
多件: 1
CNY8.46 (CNY9.56 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品概述
217183 series right angle, hybrid Universal Serial Bus (USB) Type C shielded I/O receptacles are used in consumer, aviation, medical, industrial, commercial, automotive and connected home applications. Hybrid soldering design facilitates re-work in case of solder paste fail, enables easy testing with improved yield rate and eases supplementary soldering on SMT pins.
- Top mount, dual row USB 3.2 Gen1 connector
- 5A maximum current, 5Gbps data rate, 20V/5A power, 24 circuits
- Metal shell provides strength/robustness to the connector
- Friction design with spring shell delivers strong mating force
- Mid-plate tongue design ensure high reliability while preventing damage from connector mishandling
- Offer design flexibility
- Durability (min) of 10,000 cycles
- Voltage (maximum) of 30V (DC/AC)
- High-temperature nylon housing
- Copper alloy contact, operating temperature range from -40 to +85°C
技术规格
USB连接器类型
USB C
极性
插座
连接器安装
通孔安装
触点材料
铜合金
产品范围
217183
USB标准
USB 3.2
路数
24路
方向
直角型
触芯镀层
镀金触芯
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
法律与环境
税则号：85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：稍后通知
RoHS 邻苯二甲酸盐合规:稍后通知
SVHC:No SVHC (21-Jan-2025)
