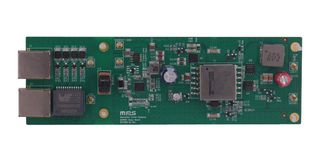

EVL8030-QJ-01A

EVL8030-QJ-01A is an evaluation board designed to demonstrate the capabilities of the MP8030, a fully integrated, IEEE 802.3af/at/bt-compatible, Power over Ethernet (PoE) powered device (PD) with a PD interface and a high-efficiency forward controller. The PD interface has all the functions of IEEE 802.3af/at/bt. It integrates a 100V hot-swap MOSFET and a gate driver (GATE1) to improve efficiency for high-power applications. The second gate driver (GATE2) supports an external, low RDS(ON) N-channel MOSFET to reduce high power loss while the controller is powered by an adapter. The controller is designed for both primary-side regulation (PSR) in fly back applications and secondary-side regulation (SSR) in active-clamped forward applications.

• 41V to 57V Power over Ethernet (PoE) Input or 48V auxiliary adapter input
• 5V output voltage (VOUT) and 14A output current (IOUT)
• Active-clamp forward
• 802.3af/at/bt compatible
• Integrated detection resistor
• Supports automatic classification
• Automatic maintain power signature
• Frequency dithering for reduced EMI
• Auxiliary winding supply (VCC) for power loss reduction
• Overload protection, short-circuit protection and over-voltage protection with hiccup mode, TSD
