76-007

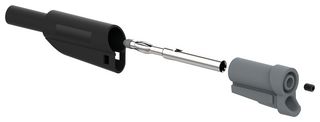

The 76-007 from Tenma is a stacking black banana plug with solderless safety wire termination. It is a 4mm Do-it-Yourself (DIY) stacking sheathed banana plug that allows user to build own test leads and meet the latest safety standards. Solderless set screw wire connection and snap together housing for easy field assembly.

• Insulator body material is polypropylene insulator body
• Brass with nickel plated plug
• BECU with nickel plated contact spring
• Rated voltage is 600V CAT IV / 1000V CAT III and maximum current is 36A
• Internal resistance is less than 10mohm
• Operating temperature is -20°C to +80°C
• Conductor size is 0.09 (12AWG), insulation is 0.16" (4mm) max
• Strip length is 0.25" (6.4mm)
• 12 month limited warranty *view Terms & Conditions for details
