76-065
测试探头连接器, 吊钩, 电压, 通用电气和电子测试, 控制和测量
图片仅用于图解说明，详见产品说明。
24 有货
需要更多？
24 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY128.920 (CNY145.6796) |
| 25+ | CNY116.900 (CNY132.097) |
| 100+ | CNY111.190 (CNY125.6447) |
| 250+ | CNY106.950 (CNY120.8535) |
包装规格：每个
最低: 1
多件: 1
CNY128.92 (CNY145.68 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
产品概述

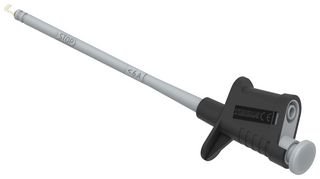

The 76-065 from Tenma is a black colour hook clip with 4mm female banana jack. It is used to grasp conductive parts safely to measure voltages, general purpose electric and electronic testing, controlling and measuring. The 76-065 has electrical safety according to EN/IEC 61010-031:2008. 1000V CAT II, reinforced insulation, 6A (at +40°C).
- Overall length is 158mm
- Overall height is 39mm, overall width is 15mm
- Opening up to 4.5mm
- Nickel coated steel and brass conductor material
- Pollution degree 1 or 2
- Operating temperature range from -20°C to +80°C
- Flexible shaft
- European union marking, hand stop barrier marking, voltage marking and current marking on lead
- 12 month limited warranty *view Terms & Conditions for details
警告
Keep behind the barriers of alligator clip to operate safely while connecting to hazardous live voltages (more than 33VAC and 70VDC).
76-065 的替代之选
找到 1 件产品
相关产品
找到 8 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：France
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：France
进行最后一道重要生产流程所在的地区
税则号：90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：Y-Ex
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
下载产品合规证书
产品合规证书
重量（千克）：.022
