MCS2S-A15F
拨动开关, SPDT, (开)-关-(关), 表面安装, MCS2S, 300 mA
产品信息
制造商产品编号MCS2S-A15F
库存编号1522049RL
产品范围MCS2S
技术数据表
接点配置SPDT
开关操作(开)-关-(关)
开关安装表面安装
产品范围MCS2S
触点电流最大值300mA
触点交流电压最大值-
触点电压 直流 最大5V
方向水平
SVHC(高度关注物质)No SVHC (15-Jan-2019)
产品概述

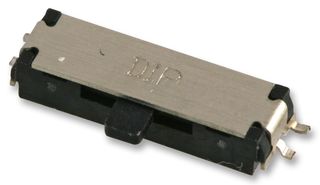

The MCS2S-A15F is a Slide Switch with SPDT contact configuration and (ON)-OFF-(OFF) switch operation. It features nickel silver cover, alloy copper with gold cladding contact disc, phosphor bronze with silver cladding terminal and nylon high temperature thermoplastic base and stem.
- Horizontal orientation
- Raised actuation type
- Side type actuator
- 50000 Electrical life cycles
- 0.98N Operating force
- 70mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance at 250VDC
- -30 to +80°C Operating temperature
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
技术规格
接点配置
SPDT
开关安装
表面安装
触点电流最大值
300mA
触点电压 直流 最大
5V
SVHC(高度关注物质)
No SVHC (15-Jan-2019)
开关操作
(开)-关-(关)
产品范围
MCS2S
触点交流电压最大值
-
方向
水平
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
税则号：85365007
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (15-Jan-2019)
下载产品合规证书
产品合规证书
重量（千克）：.00028
