MP-MSM-324
扁平磁铁，干簧传感器，ABS，黑色
50 有货
需要更多？
50 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY38.590 (CNY43.6067) |
| 10+ | CNY34.060 (CNY38.4878) |
| 25+ | CNY30.490 (CNY34.4537) |
| 50+ | CNY27.600 (CNY31.188) |
| 100+ | CNY24.510 (CNY27.6963) |
| 200+ | CNY21.520 (CNY24.3176) |
包装规格：每个
最低: 1
多件: 1
CNY38.59 (CNY43.61 含税)
品項附註
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
产品信息
产品概述

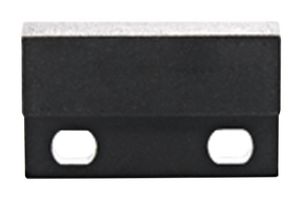

MP-MSM-324 is a flatpack matching reed magnet for use with MP-MS-324-3-1-0500 reed sensor, and hall sensor. This reed sensor magnet plays a crucial role in the operation of reed sensors, providing a reliable and cost-effective solution for magnetic sensing applications. It's compact size, robust construction, and versatility make it suitable for a wide range of industrial, commercial, and consumer applications.
- ABS, black housing material, epoxy, black potting material
- Over housing length orientation, N30H magnetic material
- 1105mT remanence Br, 836kA/m coercivity HcB
- 1274kA/m coercivity HcJ, 235kJ/m³ maximum energy product (BH)
- 3.5x10⁵ Vs cm magnetic moment M
- Temperature coefficient Tk (Br) is -0.11%/°C
- Operating temperature range from -20 to 85°C
内容
x1 Flatpack magnet.
注释
Versatile and cost-effective solution for a variety of applications.
技术规格
配件类型
扁平磁铁
SVHC(高度关注物质)
No SVHC (21-Jan-2025)
适用于
MP-MS-324-3-1-0500
技术文档 (1)
相关产品
找到 1 件产品
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：China
进行最后一道重要生产流程所在的地区
税则号：85051990
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (21-Jan-2025)
下载产品合规证书
产品合规证书
重量（千克）：.000001
