MP009038

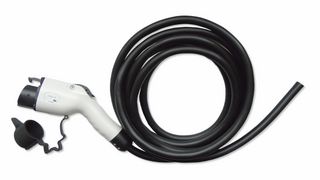

Our Multicomp Pro EV charging cable for electric vehicle, hybrid, PHEV allow user to charge your electric vehicle at any Type 2 socketed public or home charging unit. Compatible with all Type 2 (IEC 62196) electric vehicles. With an IP54 waterproof rating user can rest easy leaving users cable outside overnight. The cables are also heat resistant for long charging times. The plugs on the end of the cable are made from hard wearing polybutylene terephthalate (PBT). This cable is ultra flexible and easy to store.

• EV charging cable (IEC 62196-2 type 1 (SAE J1772) to free end)
• Voltage rating is 240VAC, current rating is 32A
• <gt/>1000Mohm (DC500V) insulation resistance, 0.5mohm maximum contact resistance
• Withstand voltage is 2000V, UL94 V-0 fire rating
• Insertion and extraction force is F≤100N
• Black colour, single phase
• Thermoplastic plastics housing, copper silver coating conduct
• Environment temperature range from -30°C to +50°C, 5m length
• TUV approved, protection level is IP54
• 3 (L1, N, PE) power contacts, 2 (CP, PP) signal contacts

注释

Products must be installed by a qualified electrician.
