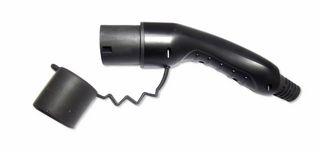

MP009735

The MULTICOMP PRO MP009735 is a Type 2 EV charging connector plug designed for reliable Level 2 electric vehicle charging applications. Featuring 7 contacts and rated at 32A and 480V AC, this male connector is suitable for use in a wide range of EV charging systems across industrial, automotive, and energy environments. Constructed with a robust thermoplastic housing and silver plated copper contacts, the connector offers low contact resistance and dependable electrical performance. It provides an IP54 protection rating, ensuring resistance to dust and splashing water, and is designed to operate in ambient temperatures from 30°C to +50°C. The connector meets UL94 V 0 flammability requirements and is TÜV approved, supporting safe and compliant EV charging installations.

• EU type 2, male EV charging gun connector
• Rated voltage is 480VAC, current rating is 32A
• <gt/>1000Mohm (DC500V) insulation resistance, 0.5mohm maximum contact resistance
• Withstand voltage is 2000V, UL94 V-0 fire rating
• Insertion and extraction force is F≤100N
• Protection level is IP54, 7 contacts, charging level 2
• Thermoplastic plastics housing, copper silver coating conduct
• Environment temperature range from -30°C to +50°C
• TUV approved
