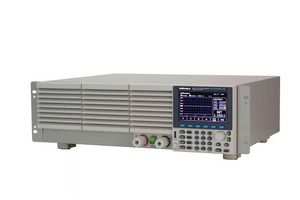

MP710778

MP710778 from Multicomp Pro is an intelligent programmable single channel DC electronic load with 1500W power, 0-150V voltage and 0-40A current input ratings, plus features a liquid crystal LCD panel display interface and an embedded spreadsheet function.

• Dynamic mode - up to 10kHz
• Resolution of voltage and current - 0.1mV/0.1mA
• Waveform display function of voltage and current
• U disk storage of waveform data
• Interface: USB, LAN, RS232
• Four working modes: CV/CC/CR/CP
• Remote sensing function
• Battery test, automatic test, OPP test and OCP test functions
• Storage for 100 sets
• Short-circuit function
• Current monitoring function
• Power off memory function
• Rotary coding switch to make easy operation
• 150Kohm input impedance
• Device dimensions - 430mm x 388mm x 150.5mm
• UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.

内容

DC electronic load, EU/UK power cords, Software CD, USB cable, RS232 cable.
