MP770291

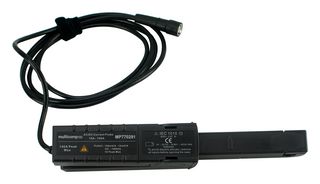

The MP770291 from Multicomp Pro is an AC-DC current probe, featuring a wide measuring range of 0.05A to 100A.

• Conversion ratio: 100mA/V 10mA/V
• DC ~100kHz bandwidth
• 11.8mm (max) jaw size
• Features a BNC connector, for use with all types of oscilloscopes
• Zero adjustment knob; demagnetization and zero adjustment
• ?1MΩ and ?100pF load impedance
• 0.01Ω input impedance
• 9V alkaline battery
• Dimensions: 231 x 36 x 67mm
• Device weight: 330g (battery included)

注释

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
