R13-24BL-05-BR

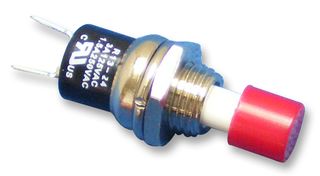

The R13-24BL-05-BR is a single-pole single-throw (SPST) momentary Pushbutton Switch with solder terminals, ON-OFF function and NC contact. The R13-24 series has red button and black PBT housing.

• Two pin momentary action
• Current rating of 3A at 125V and 1.5A at 250VAC
• Insulation resistance of 100Mohm min at DC 500V
• Dielectric strength of 1000VAC
• Red ABS button with Ø10 x 8.5mm size and black PBT housing
