产品信息
制造商产品编号28505
库存编号2062037
技术数据表
引线长度1m
接地线颜色黄色
接地端子摁扣式
接地电阻1Mohm
产品范围-
SVHC(高度关注物质)To Be Advised
产品概述

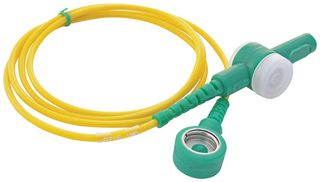

The 28505 is a 1m Common Point Ground Wire features the body housing with a combination of 10mm male snap, 10mm female snap and banana receptacle with 1Mohm resistor joined in-series while the other end is 10mm female snap. The ground ends of the cord shall have a nylon single material moulding for both moulded body and strain relief. The conductors diameter is 2.5mm with 7tinsel wire and the insulation of the straight cord insulated with polyurethane. Bending life test exceeds 20000 cycles of bending life test without any physical damage on the strain relief.
- Yellow cord and green moulded ends and chips
技术规格
引线长度
1m
接地端子
摁扣式
产品范围
-
接地线颜色
黄色
接地电阻
1Mohm
SVHC(高度关注物质)
To Be Advised
技术文档 (1)
相关产品
找到 3 件产品
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:Taiwan
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:Taiwan
进行最后一道重要生产流程所在的地区
税则号:85444290
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规:是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:To Be Advised
下载产品合规证书
产品合规证书
重量(千克):.021455
